Monaco Wolf - 2014
5000 AluminiumSemi-displacement
Built to impress, designed for living

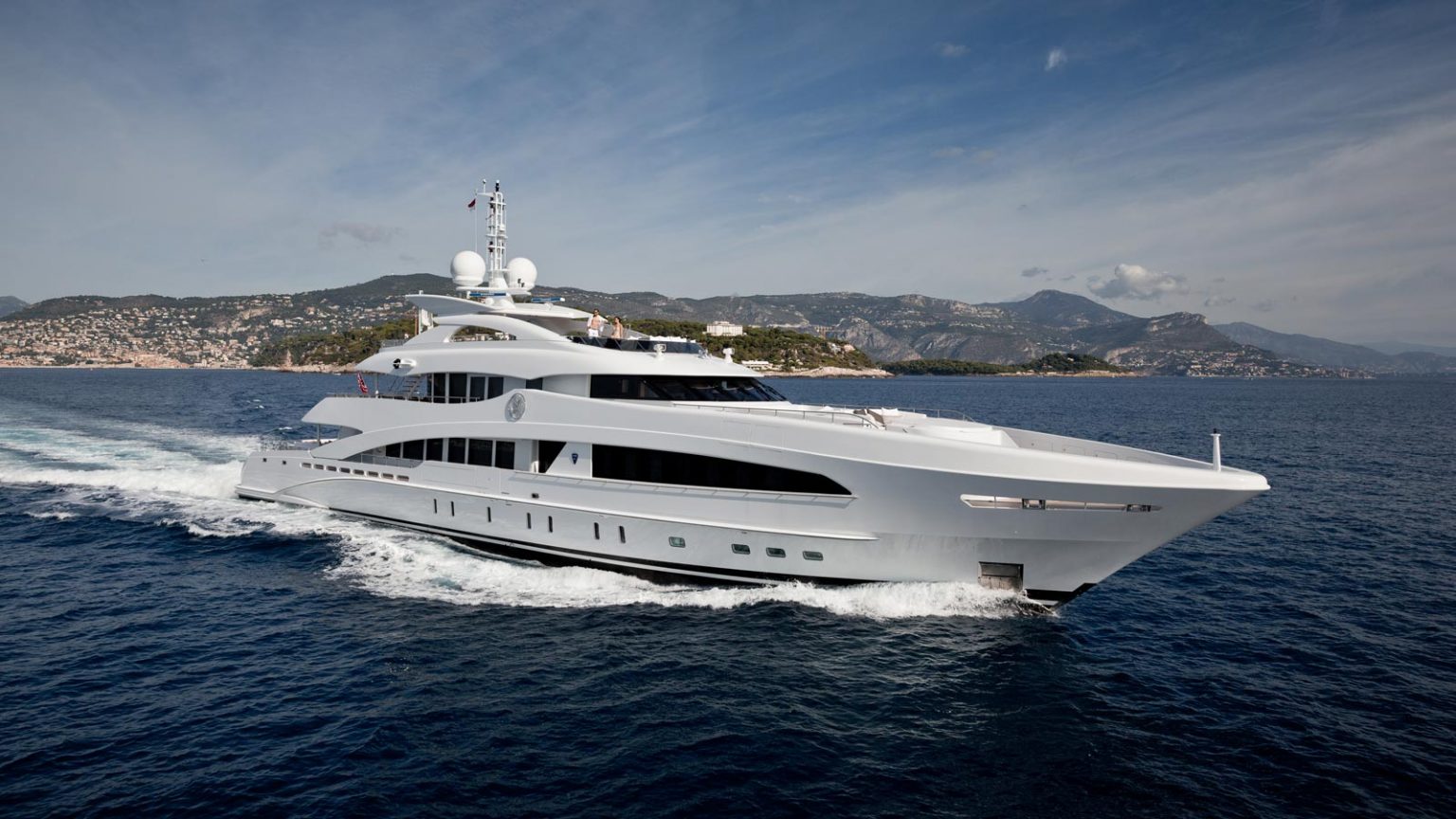

Monaco Wolf is the fourth yacht in our award-winning 50 metre aluminium series. Less power is needed to achieve a given speed and less power, means less fuel. Monaco Wolf attains a top speed of 23 knots and has
a transoceanic range of 3,100 Nm. It is a combination that no other yacht of this size and quality can match.
First impressions
The 70 square metre sun deck has been designed as a massive open-plan space to be custom furnished to the owner’s exact requirements. A large jacuzzi is almost entirely surrounded by full-beam sunpads and such is the flexibility of the Heesen build programme that there is still time for a gymnasium to be built as an extra feature.
Step aboard
Monaco Wolf can accommodate up to twelve guests in six staterooms. The master suite is traditionally located on the main deck. Both bedroom and bathroom are full-beam with windows running along their entire length. The other guest suites are found on the lower deck and include a full-beam VIP, two double and two twin suites. Lastly and perhaps most importantly, the use of plate glass screens in the exterior railings means that as well as satisfying all the usual safety regulations, Monaco Wolf also offers safe passage for any canine companions.
Specifications
General
Hull type: Semi-displacement
Exterior design: Omega Architects
Interior design: Francesco Paszkowski Design
Hull: Aluminium
Dimensions
Length over all: 49.80 metres / 163 feet 4 inches
Beam over all: 9 metres / 29 feet 6 inches
Draft (half load): 2.50 metres / 8 feet 2 inches
Tonnage: approx. 499 GT
Accommodations
Crew: 9
Guests: 12
Cabins: Full-beam owner’s stateroom, full-beam VIP suite, two double guest suites and two twin guest suites
Technical Details
Maximum speed (half load): 23 knots
Range: 3,100Nm at 11 knots
Fuel capacity: 68,800 litres / 18,200 US Gallons
Fresh water: 16,200 litres / 4,300 US Gallons
Propulsion Details
Main engines: 2 x MTU 16V 4000 M73L
Maximum power: 2 x 2,880kW
Main generators: 2 x Kilo-Pak, each 99kW
Bowthruster: ZF-Marine 90kW, hydraulically driven
Stabilisers: Naiad Dynamics, 2 fins, type 720, zero speed
General arrangement
Sun deck
Wheelhouse deck
Main deck
Lower deck
Sisterships 5000 Aluminium Semi-displacement <2019
